Screen (alternative)
As Creality and DWIN aren’t very cooperative to give us some technical details about the printer screen, we searched for other compatible screens.
Here’s a working alternative: DWIN model DMG48270C043_03W
Reference details
- DM = smart screen
- G = 24 bit color
- 48 = horizontal resolution code, 480px
- 270 = vertical resolution, 270px
- C = commercial classification
- 043 = 4.3 inches in diagonal
- _
- 0 = basic
- 3 = hardware version
- W = no meaning, internal (?)
- @ = touch screen capacities, can be:
- TC = capacitive
- TR = resistive
- N = no touch
Shopping
When this note was written, it was sold around 20€, shipping included.
Some links to sellers from AliExpress:
- https://www.aliexpress.com/item/4001022777228.html
- https://www.aliexpress.com/item/4000957474039.html
- https://www.aliexpress.com/item/1005002069287135.html
- https://www.aliexpress.com/item/4000446127137.html
- https://www.aliexpress.com/item/33037525947.html

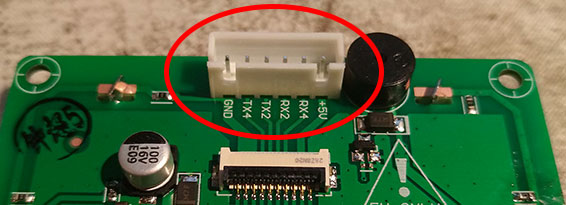

Note: to connect it to your printer, you will have to solder a JST-XH 2.54mm 6 pins male connector (see the “pictures” section).

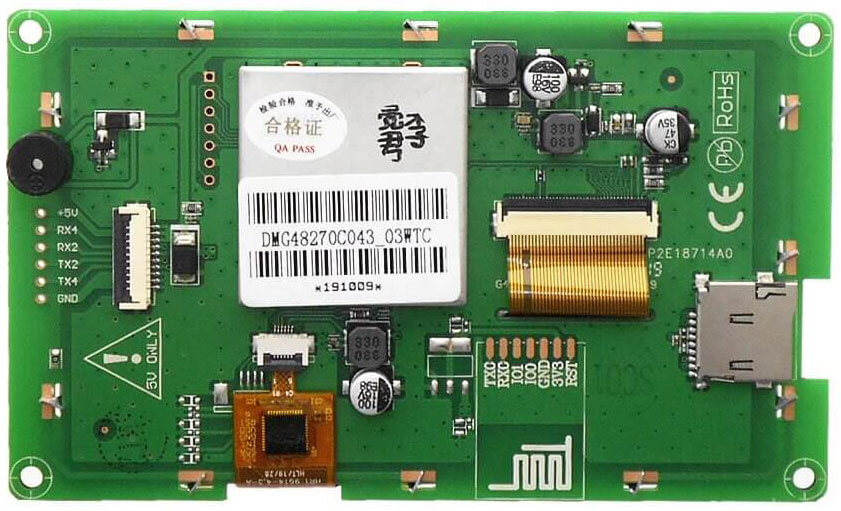

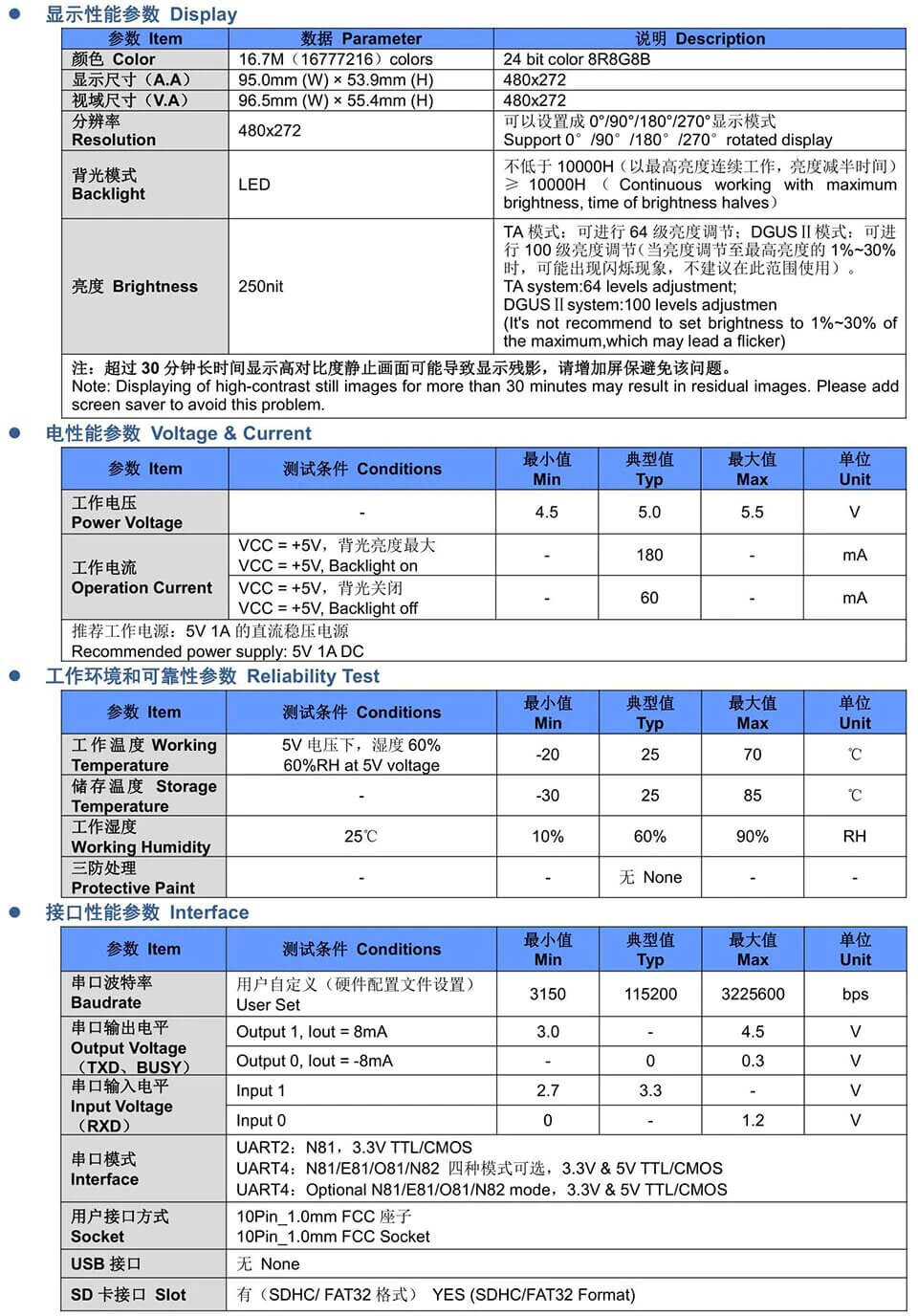

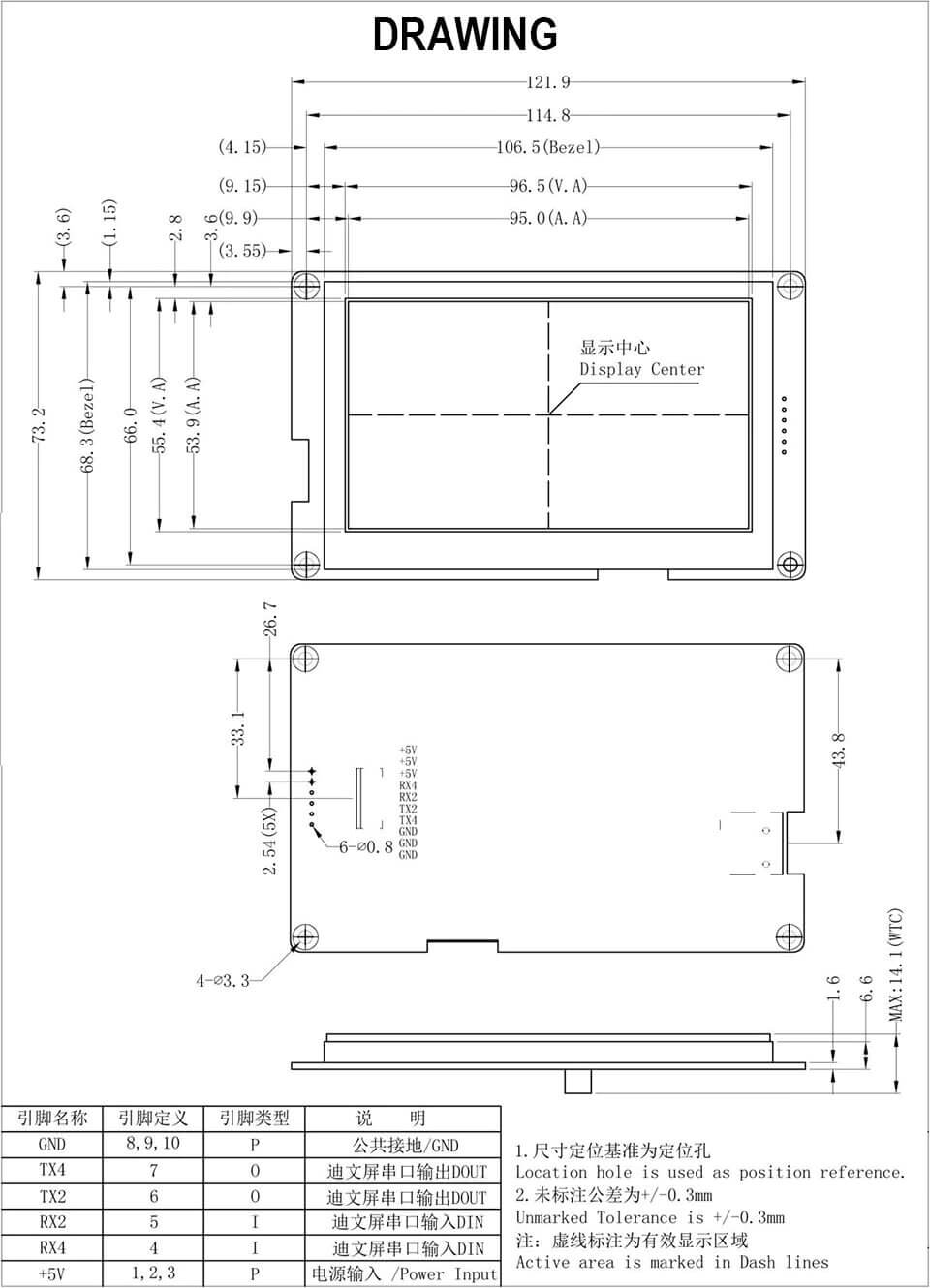

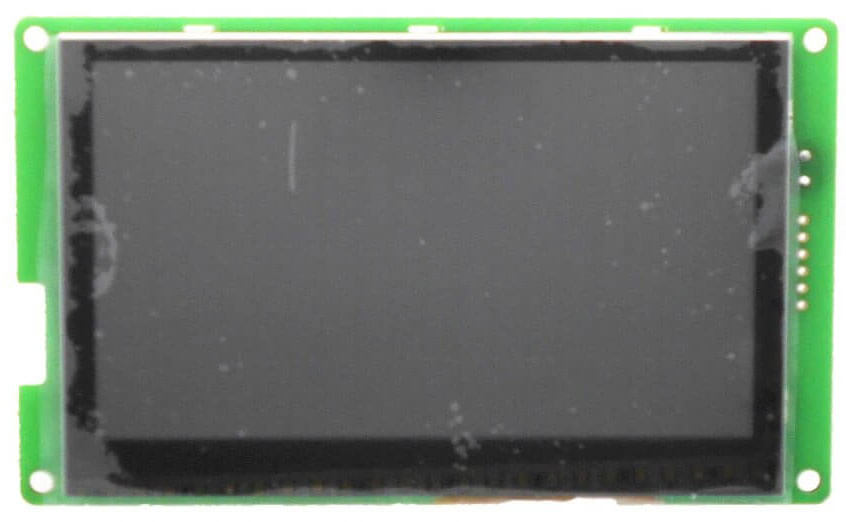

Pictures
